See what’s new in Trigno Discover 2.0
Trigno Discover 2.0 introduces a major overhaul of data visualisation, analysis, and organisation features.
See general requirements and activation guide.
Version
2.0.1.2
Released on 7 April 2025
Major new software features include a complete UI redesign, bar chart biofeedback, event marking and threshold-based analysis, database file structure, and advanced export options. Trigno Discover 2.0 also brings improved support for large data files, clean-up of data after collection, and general bug fixes and performance improvements.
| Hardware | Firmware |
|---|---|
| Trigno Avanti Style Sensors | 40-49 |
| Trigno Maize Sensors | 60-29 |
| Trigno Centro | 06-05 |
| Trigno Research+ Digital Base Station | 2919 | 1506 | 0806 | 2008 | 0000 |
| Trigno Research+ Analog-Digital Base Station | 2919 | 1506 | 0806 | 2008 | 0901 |
| Trigno Lite | 02-02 |
| Trigno Link | 02-18 |
| Trigno Research+ USB Driver | Version 6 (6.X.X) |
*Legacy Trigno sensors are not supported in Trigno Discover.
*USB Driver version only applies when using the Trigno Research+ system.
New Features

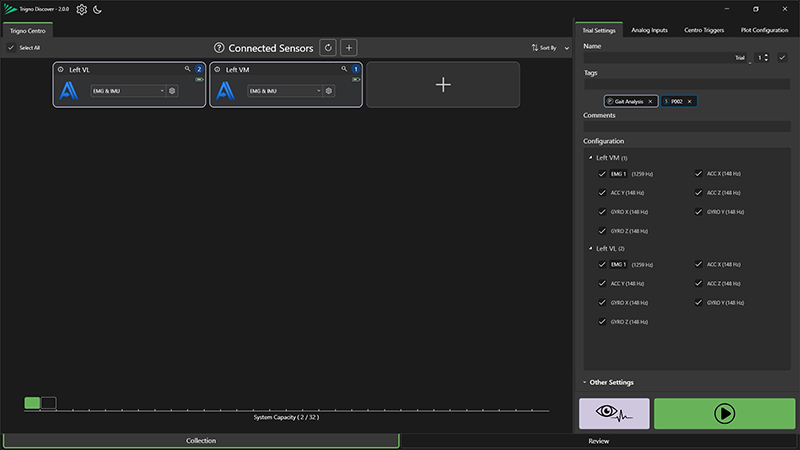

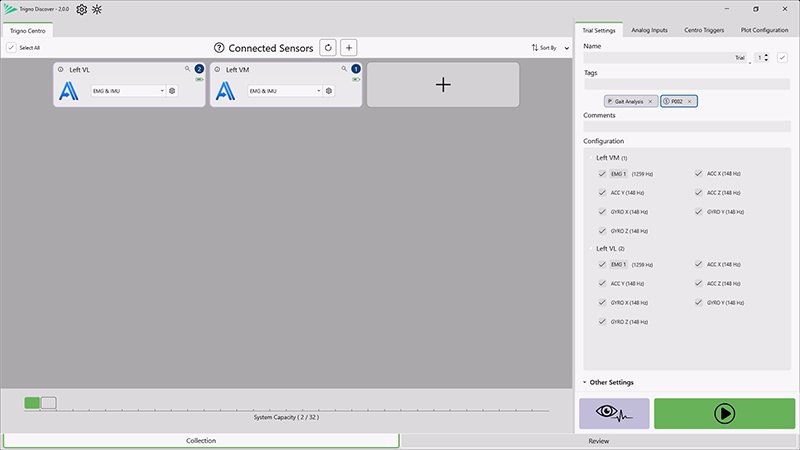

Major UI Redesign
Future thinking research deserves a modern feeling software. Trigno Discover 2.0 introduces a bold new UI experience aimed at creating a simple and intuitive interface that hides the complexity of system set-up, configuration, and data visualisations. Every screen within the software has been optimised and can now be toggle between light and dark mode.
Bar Chart Biofeedback
Gain new data visualisation options with bar chart biofeedback to improve user engagement and muscle control. Biofeedback can be applied to EMG channels for muscle activity, Trigno Link compatible devices for setting thresholds on physiological parameters, and analog data channels for tracing force profiles.

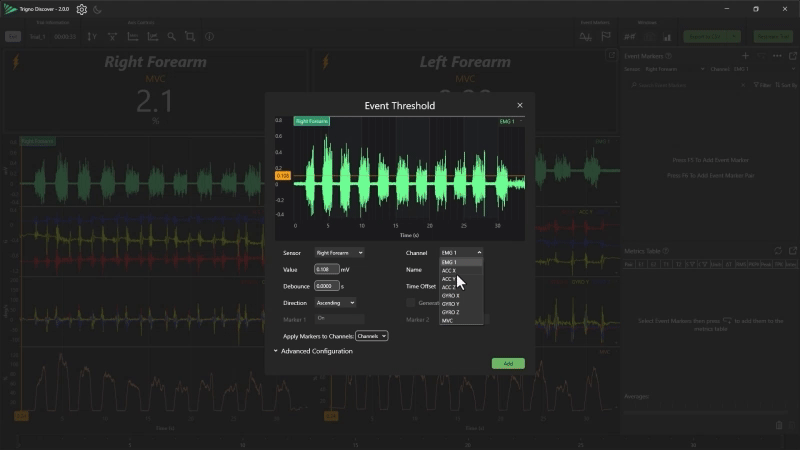

Event Marker System
Easily create event and threshold-based metrics with self-generated or threshold determined markers to quickly collect automated data metrics for further analysis.

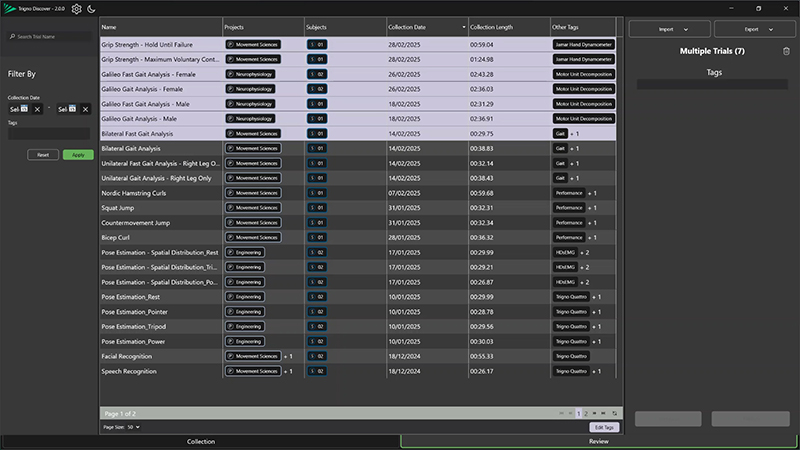

New Database File System
Create a centralised database of your data which can be easily managed and tagged to allow for filtering of trials, better organisation within and across groups, and simplified ways to collaborate on shared projects with improved import and export options.
Advanced Export Options
Trigno Discover 2.0 brings further support for additional file types. Now supporting .C3D, Delsys EMG data can be exported for further analysis across multiple platforms with advanced customisation features for data segmentation and resampling.
Improvements
- Improved experience around loading and reviewing large data files.
- Added indicator to Galileo configurations to show NeuroMap compatibility.
- Improved consistency of plot controls.
- Improved robustness of clean-up operations when stopping a data collection session.
- Saving of analog inputs and Trigno Centro trigger settings between trials.
Bug Fixes
- Fixed a crash that could occur upon license initialization.
- General updates and improvements.
